Let’s get started!

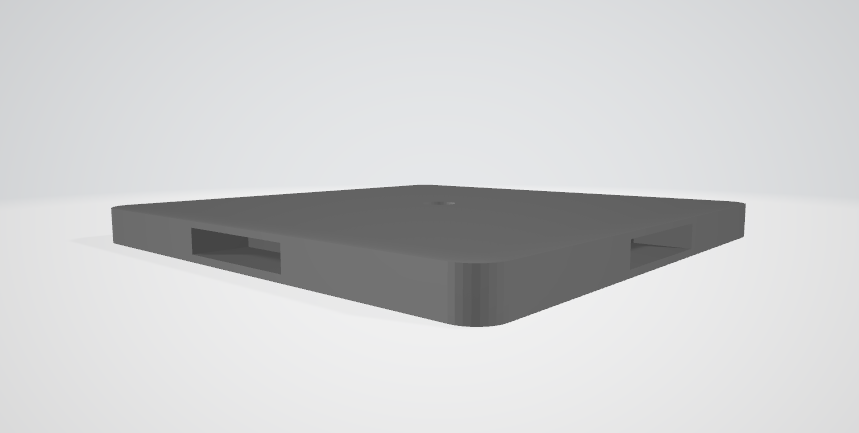

Anchor Assembly
Bucket Assembly
The M10x20 screws, which are the smaller screws in this assembly, are designed to secure the buckets in place. To install them, insert each screw through the hole in the bucket and ensure it passes completely through. Once properly seated, the screw head should sit flush against the surface of the bucket, providing a secure and even fit. Double-check that the alignment is correct before tightening the screws to avoid any misalignment or gaps.

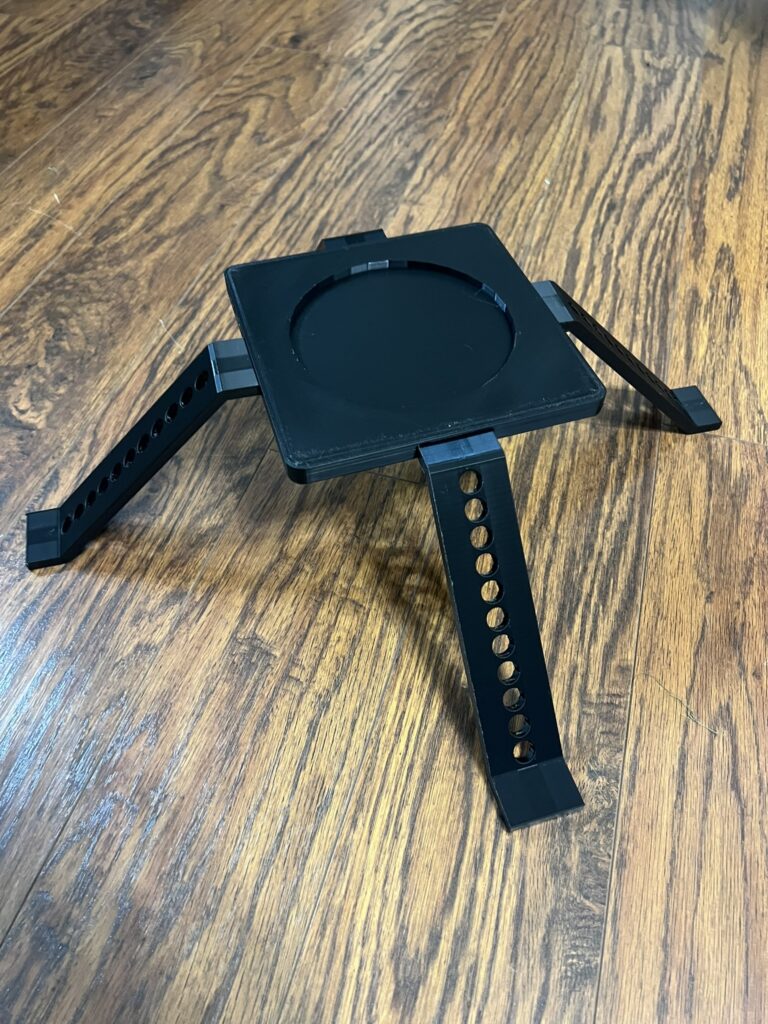

Select one of the holes on the anchor assembly at the angle that best suits your installation needs. Insert the screw through the chosen hole, ensuring it aligns properly with the corresponding attachment point. Make sure the screw is positioned securely and sits flush against the surface before tightening it to provide a stable and reliable connection. Do not overtighten.
Anchor Level Nut (OPTIONAL)
The anchor level serves as an additional support mechanism for the bucket stand, enhancing its stability and durability. To install it, insert the M10x40 screw through the top bucket, ensuring it passes cleanly through the designated hole. Secure the screw in place by fastening it with the anchor level nut, which is specifically designed to integrate with the anchor level for added reinforcement.
If you prefer not to utilize the anchor level, you can simply substitute the anchor level nut with a standard nut to secure the assembly. Ensure all components are tightened properly to maintain structural integrity, regardless of which configuration you choose.
